Deploy a Database Cluster

PrecisionFDA provides AWS Aurora RDS database clusters that are accessible from Apps and Workstations. You will need to request DB Cluster access for your precisionFDA username in order to use this capability.

Create the Database

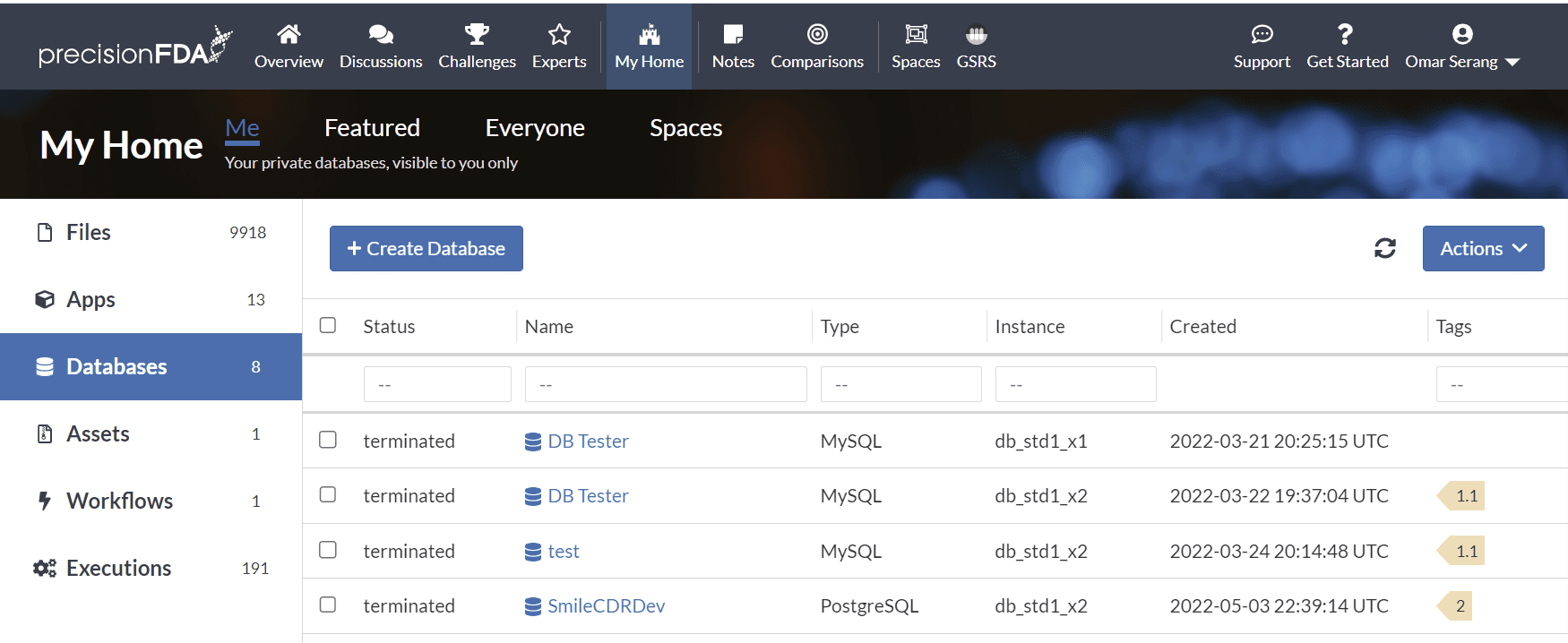

Select the Databases tab in My Home and click the Create Database button. alt text

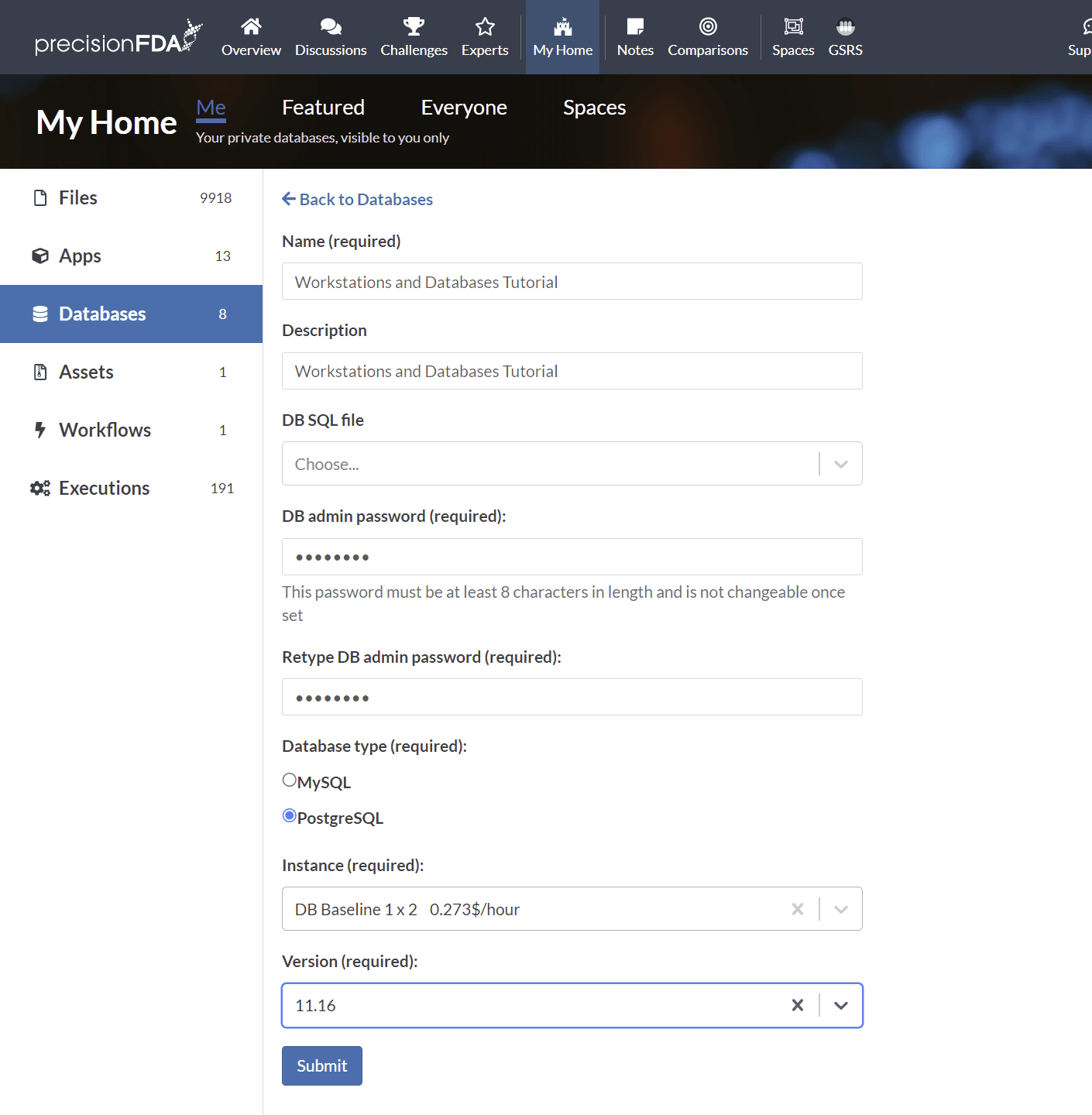

Create a “Workstations and Databases Tutorial” database, “password”, PostgreSQL 11.16 on the smallest available database instance type, and click the Submit button.

alt text

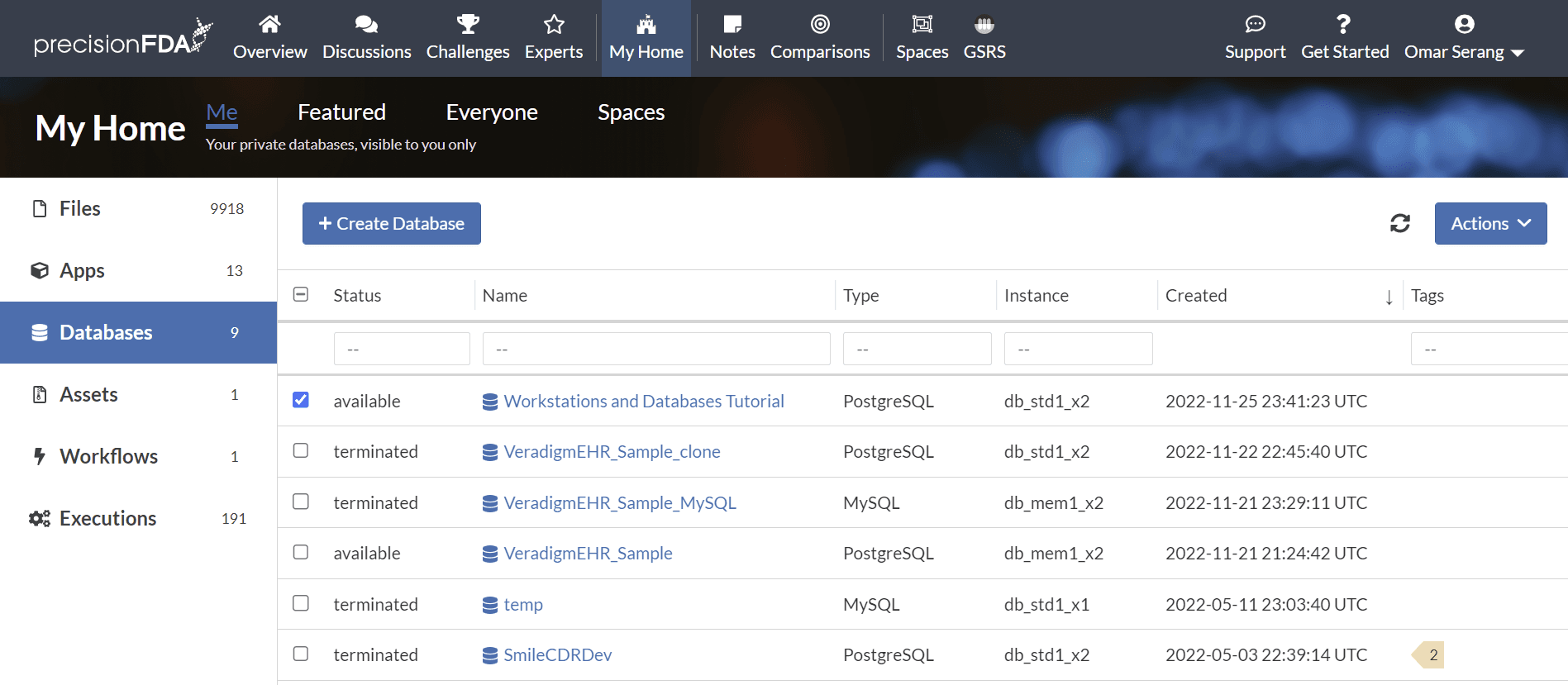

Refresh the database status using the refresh button until the database is available.

alt text

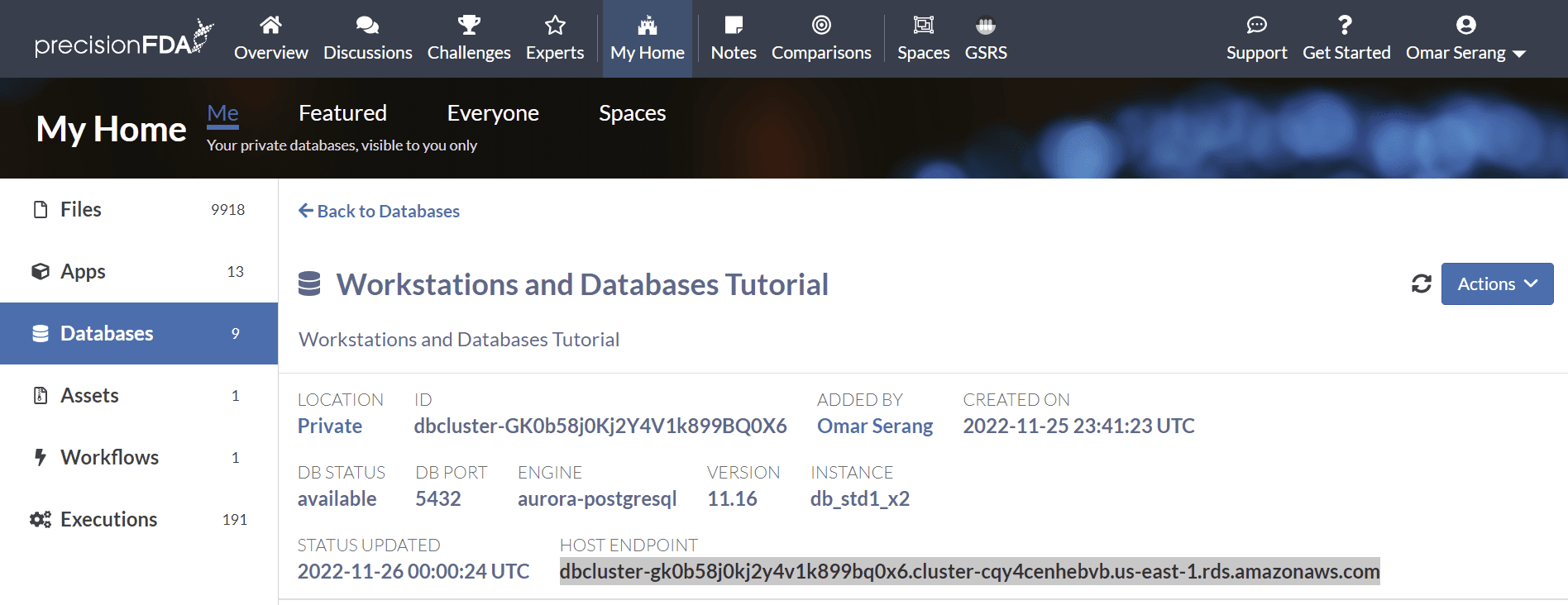

Click on the Workstations and Databases Tutorial database to open the detail page and copy the host endpoint URL.

alt text

Connect to the cluster DB from pgadmin

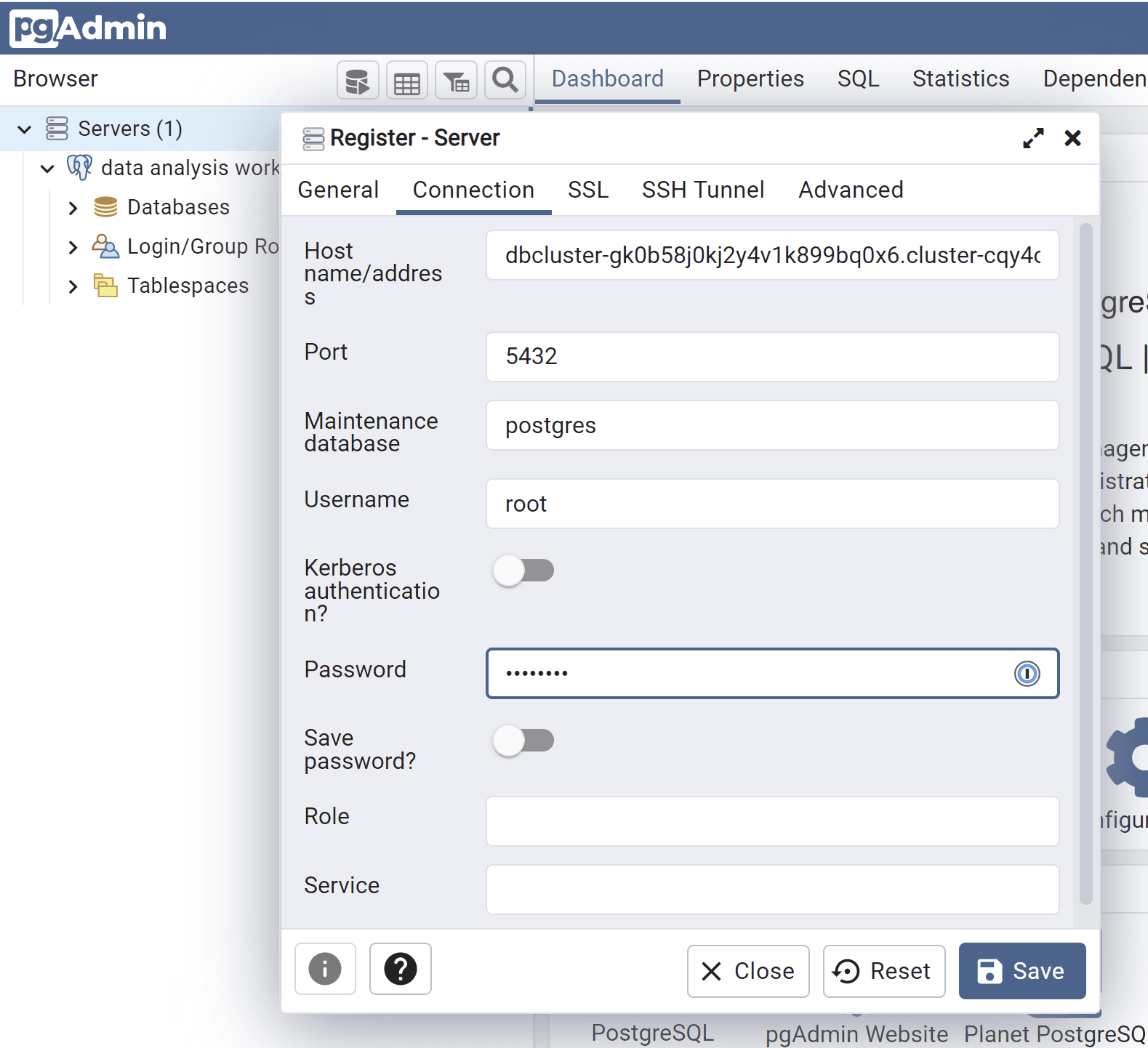

In the pgadmin web service, add a new server for the Workstations and Databases Tutorial DB cluster using the host endpoint, user root, and the password specified when the database was created.

alt text

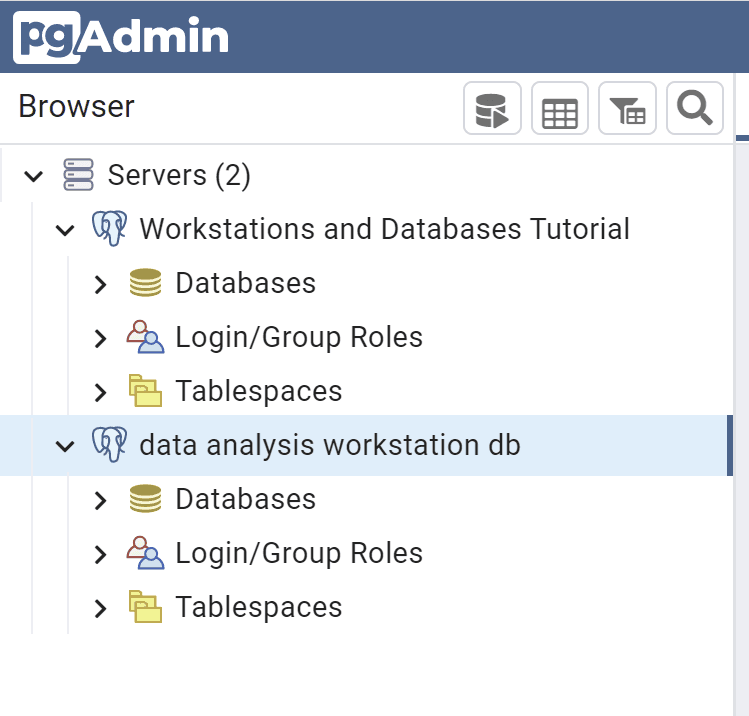

Note that we now have connections to both the local database on the data analysis workstation, and the cluster database.

alt text

Create a new database and tables

Connect to the cluster database from psql in the data analysis workstation shell.

PGPASSWORD="password" psql --host=dbcluster-gbfqzqq0kj2jxgj109354vjj.cluster-cqy4cenhebvb.us-east-1.rds.amazonaws.com --username=root -d postgres

Using psql, create a new database.

-- Database: workstations_and_databases_tutorial_db
CREATE DATABASE workstations_and_databases_tutorial_db
    WITH
    OWNER = root
    ENCODING = 'UTF8'
    CONNECTION LIMIT = -1
    IS_TEMPLATE = False;

Connect to the new database and create two tables.

\c workstations_and_databases_tutorial_db;

psql (9.5.25, server 11.16)
WARNING: psql major version 9.5, server major version 11.
         Some psql features might not work.
SSL connection (protocol: TLSv1.2, cipher: ECDHE-RSA-AES128-GCM-SHA256, bits: 128, compression: off)
You are now connected to database "workstations_and_databases_tutorial_db" as user "root".
workstations_and_databases_tutorial_db=>

CREATE TABLE public."PATIENT" (
    patient_id bigint NOT NULL,
    name character varying,
    gender character varying,
    zip character varying,
    country character varying,
    created_date date
);

CREATE TABLE public."OBSERVATION" (
    observation_id bigint NOT NULL,
    patient_id bigint,
    observation_name character varying,
    loinc character varying,
    created_date date
);

\dt
          List of relations
 Schema |    Name     | Type  | Owner
--------+-------------+-------+-------
 public | OBSERVATION | table | root
 public | PATIENT     | table | root
(2 rows)

Load the cluster database from delimited text files

Although the workflow illustrated here may seem over-engineered for loading two data files, the techniques presented here were used to reliably and efficiently transfer tens of thousands of files and 15+ TB of data to precisionFDA.

In the data analysis workstation shell, create a datafiles directory

mkdir datafiles

Create and upload delimited data files

On your local client (i.e. laptop), create file patients.txt with the following content:

12345|Fred Foobar|M|94040|USA|2022-10-25
12346|Mary Merry|F|94040|USA|2022-09-24
12347|Barney Rubble|M|94040|USA|2022-08-23

Create file observations.txt with the following content:

9870|12345|Annual check up|66678-4|2022-11-01
9871|12345|Emergency|LG32756-5|2022-11-02
9872|12346|Clinic visit|66678-4|2022-11-03
9873|12347|Lab results|74418-5|2022-11-04
9874|12347|Post-op checkup|65375-8|2022-11-05

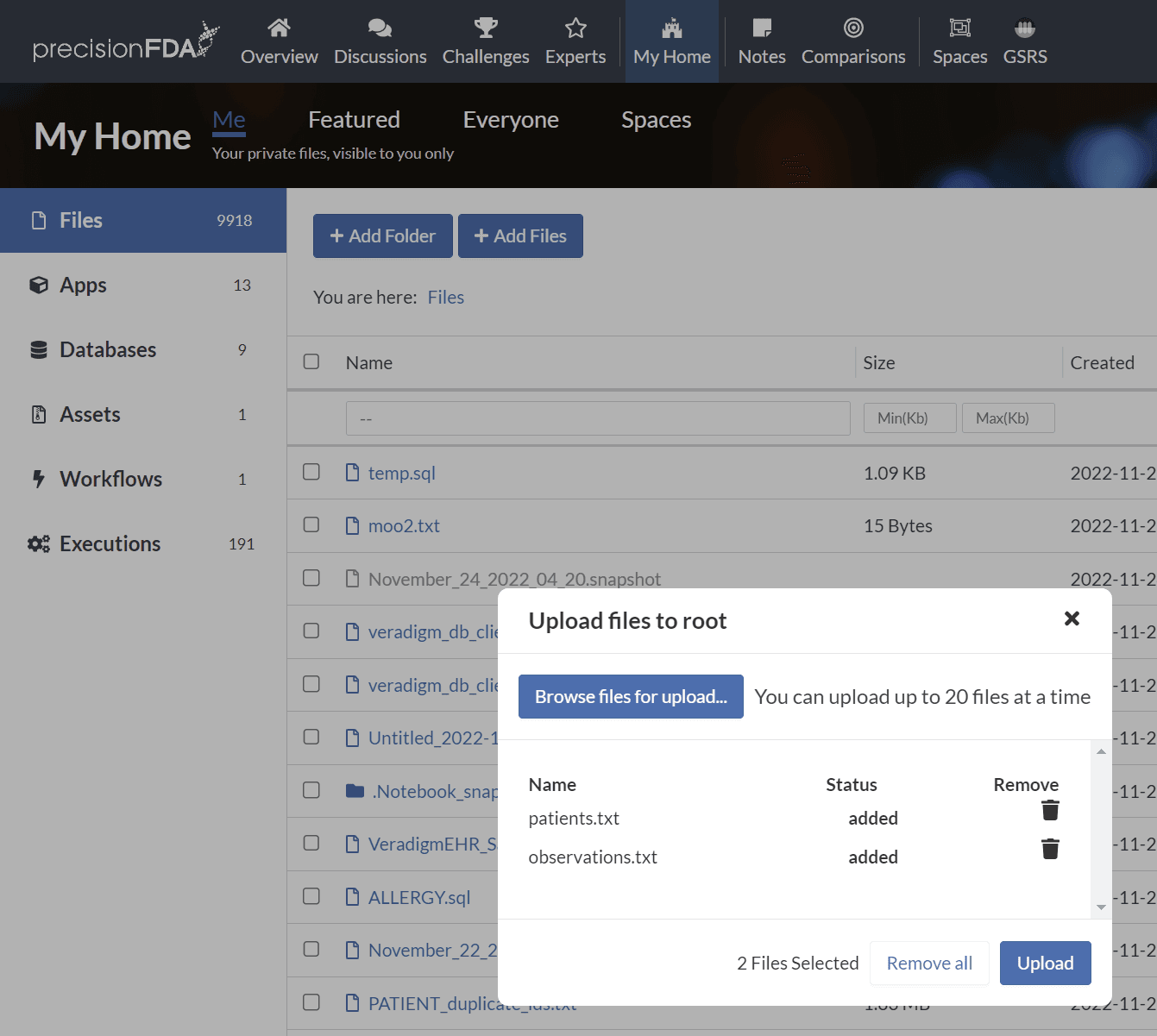

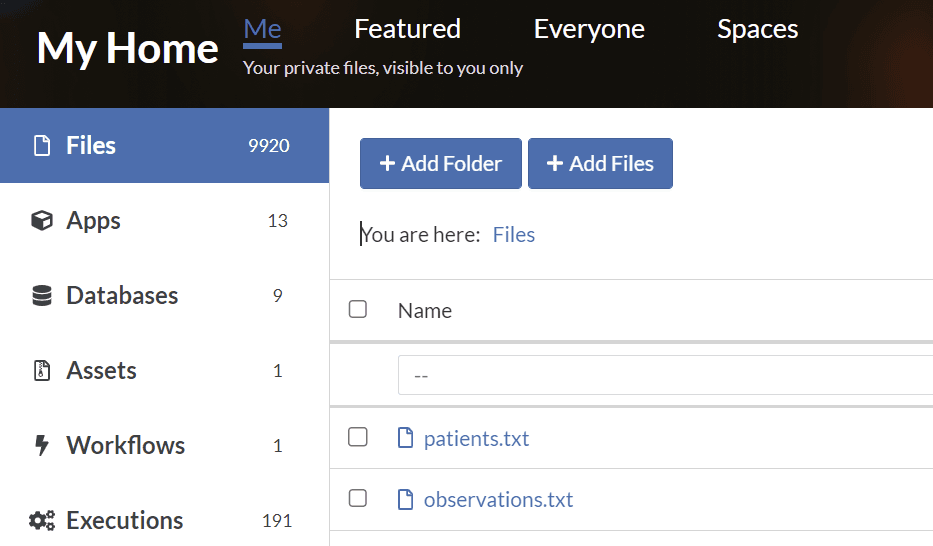

In My Home / Files use the Add Files button to upload the two files to your private area.

alt text

Create and upload a manifest of data file IDs

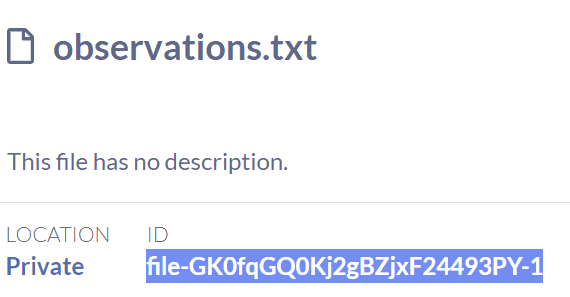

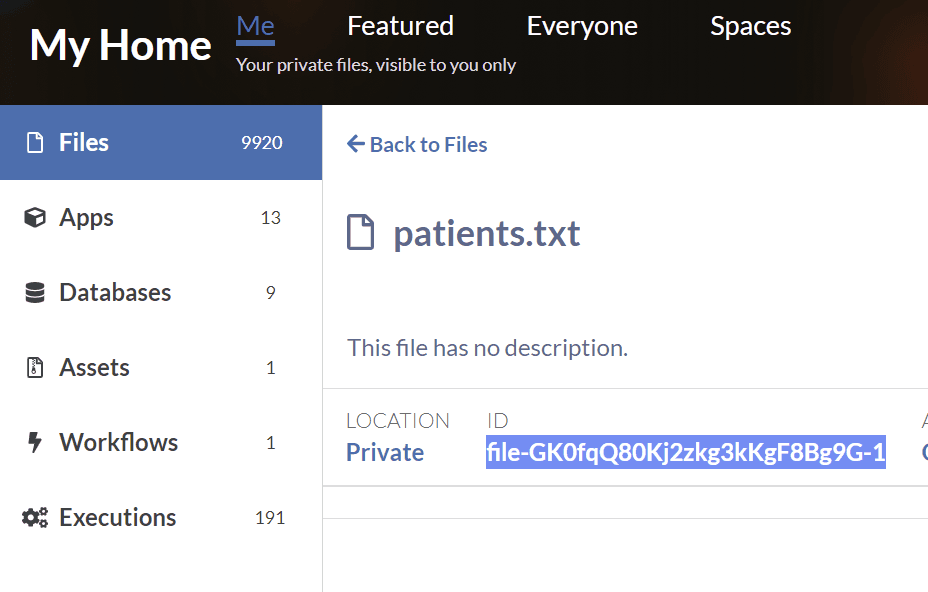

Click into patients.txt and observations.txt details pages and copy their file IDs into a file named manifest.txt file on your local client.

alt text

-- manifest.txt
file-GK0fqQ80Kj2zkg3kKgF8Bg9G-1
file-GK0fqGQ0Kj2gBZjxF24493PY-1

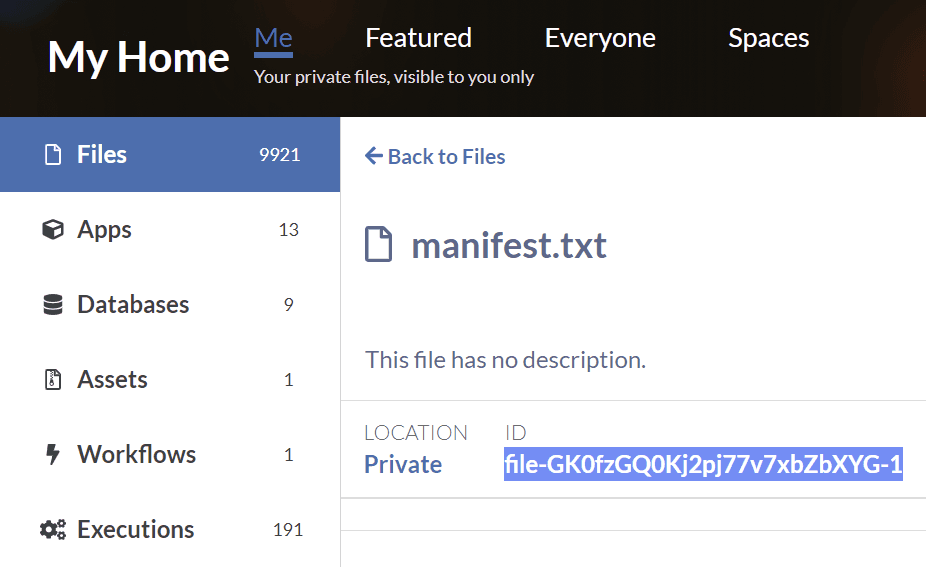

Use the Add Files button to upload the manifest.txt file to your private area. Click into the details for the uploaded file and copy the file ID.

alt text

Download the files in the manifest to the Data Analysis Workstation

Using pfda CLI in the data analysis workstation shell, download the manifest.txt file to the workstation filesystem.

pfda download -file-id file-GK0fzGQ0Kj2pj77v7xbZbXYG-1

ls -l
-rw-r--r-- 1 root root 66 Nov 26 01:58 manifest.txt

Iterate through manifest and download data files

In the data analysis workstation shell install and run dos2unix on the manifest.txt file to ensure there are no cross-OS end-of-line issues.

cd/datafiles
apt install dos2unix
dos2unix manifest.txt

for FILE in $(cat manifest.txt); do pfda download -key $key -file-id $FILE; done

ls
manifest.txt  observations.txt  patients.txt

Copy the data into the cluster DB tables

Connect to the workstations_and_databases_tutorial_db cluster database

Using the database host endpoint, connect to the workstations_and_databases_tutorial_db cluster database using psql on the data analysis workstation:

alt text

PGPASSWORD="password" psql --host=dbcluster-gk0b58j0kj2y4v1k899bq0x6.cluster-cqy4cenhebvb.us-east-1.rds.amazonaws.com --username=root -d workstations_and_databases_tutorial_db

workstations_and_databases_tutorial_db=>

Copy the patients and observations data into the cluster DB

In psql:

\copy public."PATIENT" from '/home/dnanexus/datafiles/patients.txt' delimiter '|' NULL ''

\copy public."OBSERVATION" from '/home/dnanexus/datafiles/observations.txt' delimiter '|' NULL ''

select * from public."PATIENT";
patient_id |     name      | gender |  zip  | country | created_date
------------+---------------+--------+-------+---------+--------------
      12345 | Fred Foobar   | M      | 94040 | USA     | 2022-10-25
      12346 | Mary Merry    | F      | 94040 | USA     | 2022-09-24
      12347 | Barney Rubble | M      | 94040 | USA     | 2022-08-23

select * from public."OBSERVATION";
observation_id | patient_id | observation_name |   loinc   |created_date
----------------+------------+------------------+-----------+-----------
           9870 |      12345 | Annual check up  | 66678-4   | 2022-11-01
           9871 |      12345 | Emergency        | LG32756-5 | 2022-11-02
           9872 |      12346 | Clinic visit     | 66678-4   | 2022-11-03
           9873 |      12347 | Lab results      | 74418-5   | 2022-11-04
           9874 |      12347 | Post-op checkup  | 65375-8   | 2022-11-05

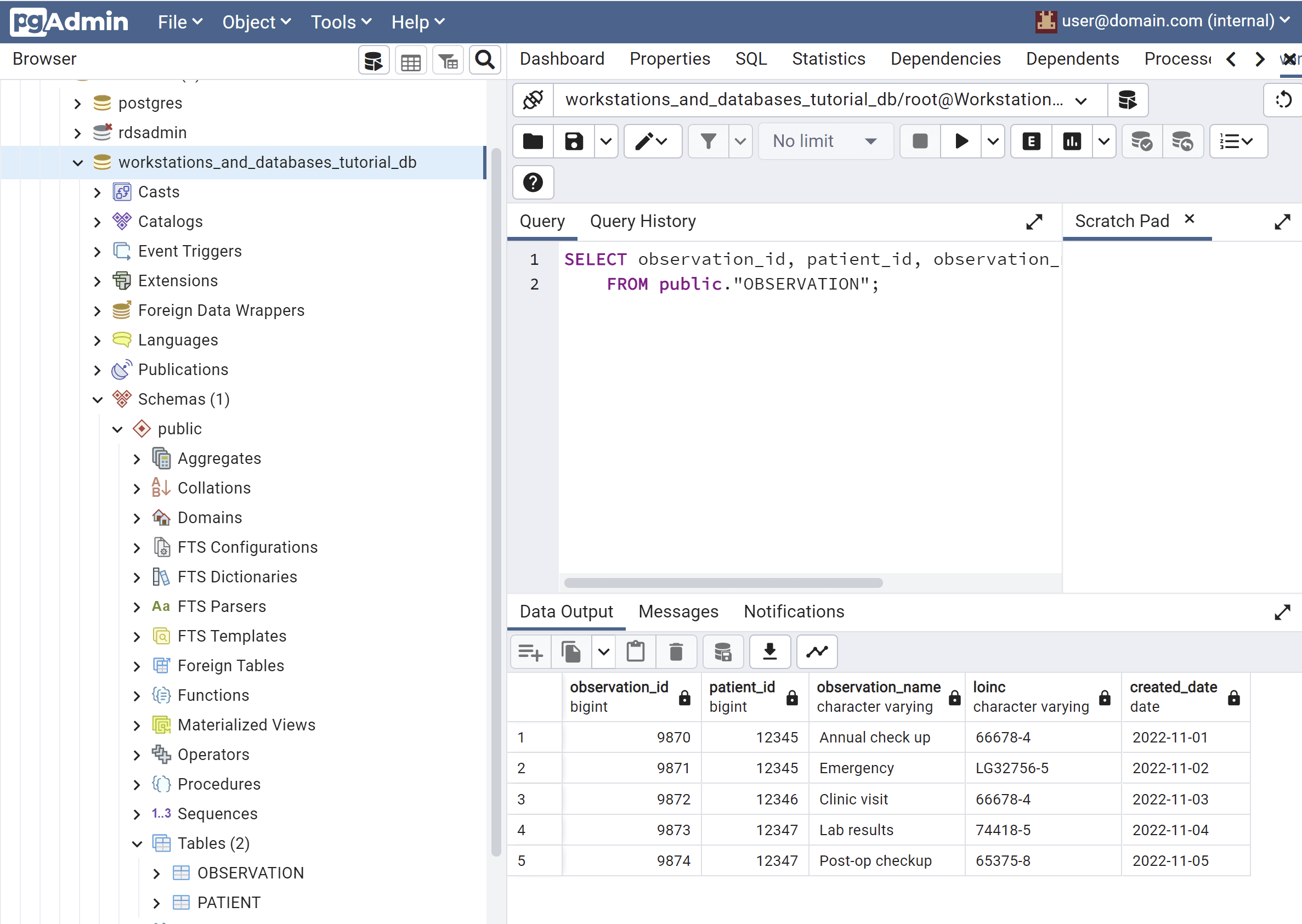

Observe the new tables and data in the pgadmin Workstations and Databases Tutorial server connection.

alt text

Connect RStudio to the cluster DB

In the RStudio console:

library(DBI)
con <- DBI::dbConnect(
    RPostgres::Postgres(),
    host = "dbcluster-gk0b58j0kj2y4v1k899bq0x6.cluster-cqy4cenhebvb.us-east-1.rds.amazonaws.com",
  port = 5432, dbname = "workstations_and_databases_tutorial_db",
    user = "root", password = "password"
)
dbListTables(con)
[1] "OBSERVATION" "PATIENT"
