Utility Apps

untar_files, tar_files_from_manifest

We are going to use the pfda_cli_2.2.tar asset to create two very useful apps that demonstrate a design pattern that is readily extensible. The precisionFDA app I/O specification supports scalar and file and output types but does not support arrays for input or output variables. This means that using the app input variable and output emit framework, you cannot create apps with an arbitrary number of inputs or outputs. For instance, you really can't even create an untar app due to this limitation. These two apps demonstrate a design pattern to overcome this limitation.

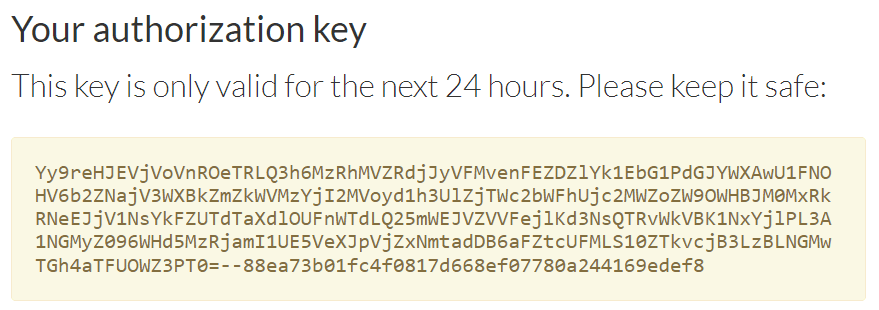

Note that these apps require a temporary authorization key that you'll use with the CLI and this key will appear in the execution log files. Thus you should only run this app in your My Home or Private Space contexts so as not to expose the key to other users.

tar_files_from_manifest: Tar a manifest of fileIDs

From My Home / Files, select the detail page and copy the file ID for a number of files. Create and upload manifest.txt with the list to be incorporated into an archive file (e.g.):

cat manifest.txt
file-GJv1zKj0Kj2vzFP4Gg475ZyX-1
file-GJv1zKj0Kj2XY800GgJY2f4G-1
file-GJv1zKQ0Kj2vfZkVFxp436B9-1

key="..."
pfda upload-file -key $key -file manifest.txt

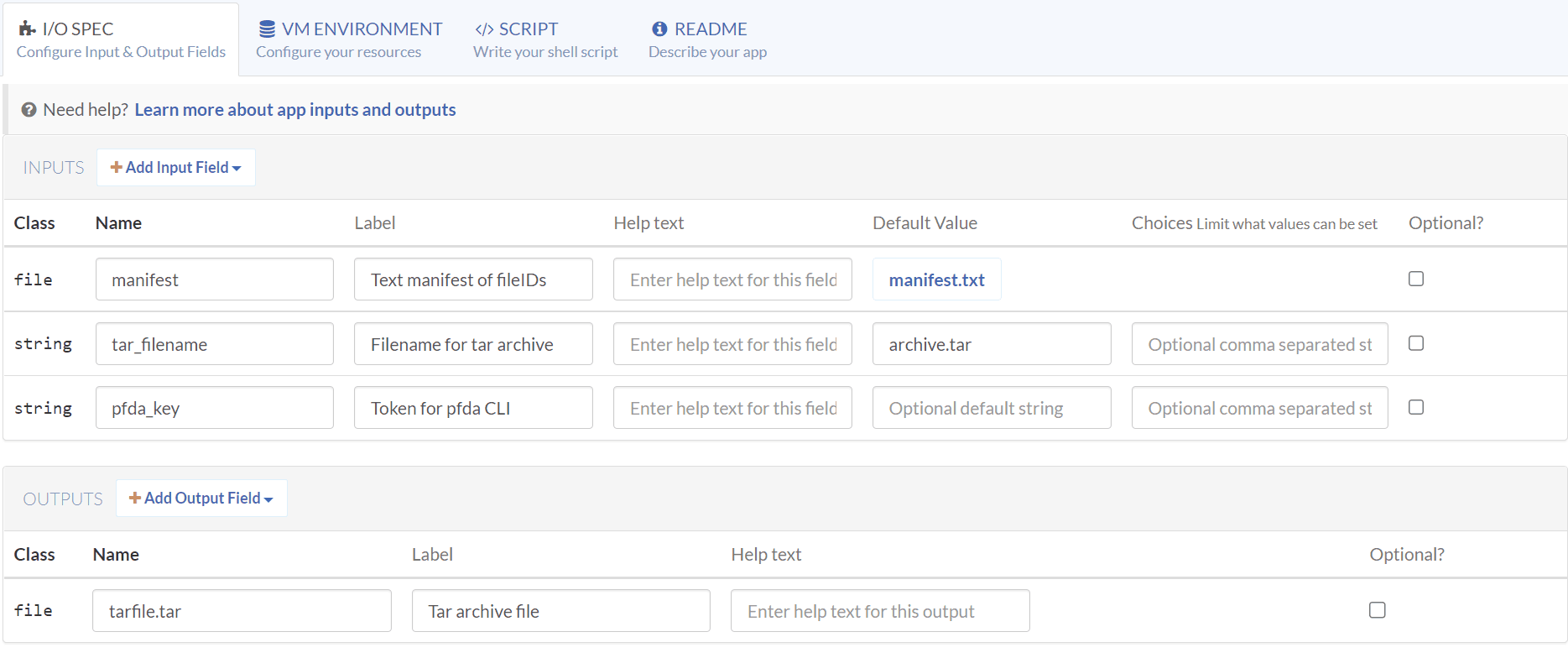

Create a tar_files_from_manifest app titled "Tar a manifest of fileIDs", with the following I/O Spec.

Setup the VM environment with internet access enabled, Baseline 2 default instance type, and select the pfda_cli_2.2 asset. Note that it can take minutes for the list of assets to loaded before they can be searched.

Enter the following Script:

set -euxo pipefail
echo "$pfda_key"
echo "$tar_filename"
echo "$manifest"
sudo apt-get update
sudo apt-get install -y dos2unix
pfda -version
mkdir temp
cd temp
dos2unix "$manifest_path"
for file in $(cat "$manifest_path"); do pfda download -key "$pfda_key" -file-id $file; done
cd ..
tar cvf "$tar_filename" temp/*
emit "tarfile" "$tar_filename"

Enter a Readme and Create the app.

Input a manifest file containing a list of fileIDs and the name of tar archive file. You\'ll need to provide a temporary authorization key for use with the pfda CLI and thus you should only run this app in your My Home or Private Spaces.

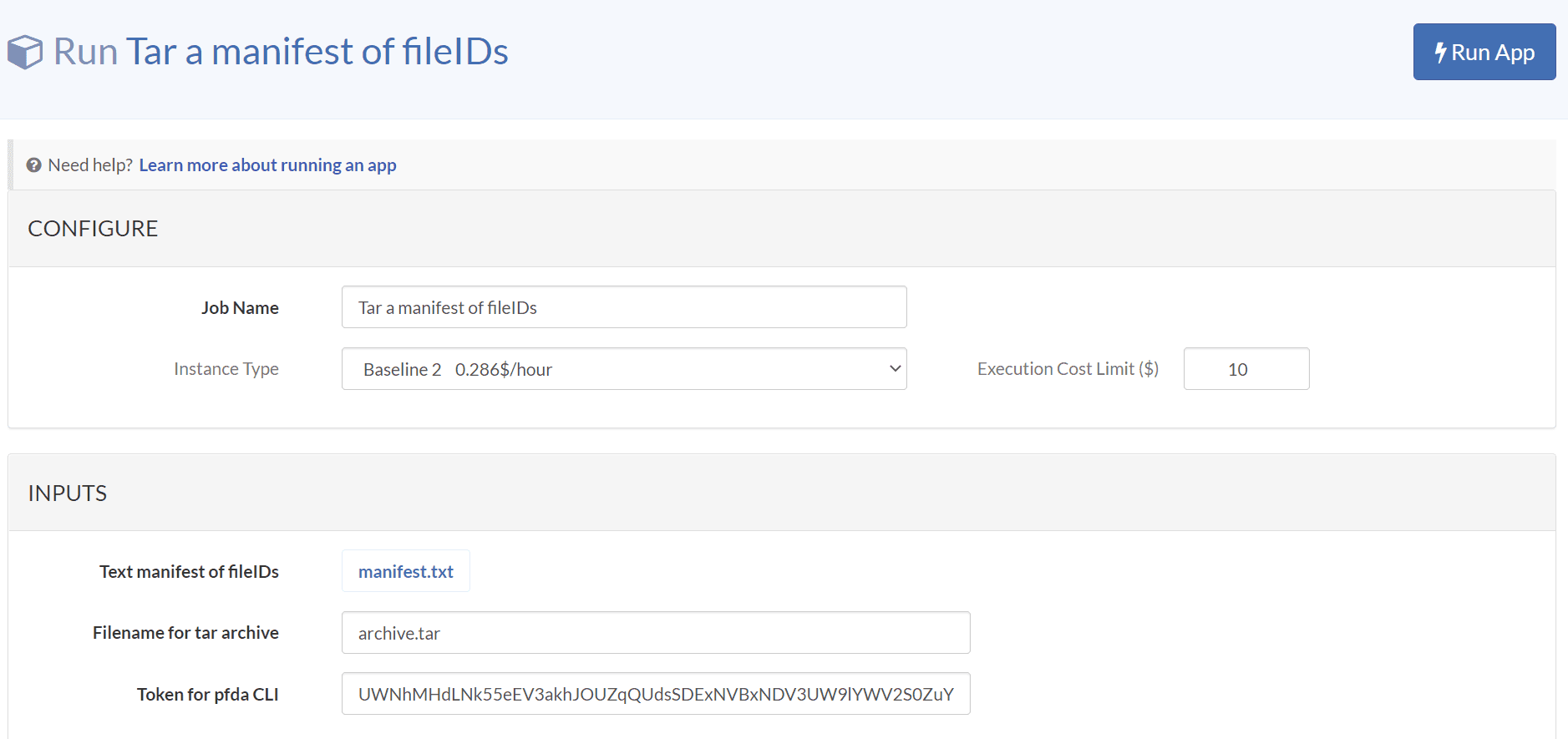

Run the app with the default inputs and a fresh authorization token for the pfda CLI and observe the new archive.tar file.

When the execution is done, download the archive.tar file to verify its contents.

tar tvf archive.tar
-rw-r--r-- root/root        15 2022-11-29 02:22 temp/foo.txt
-rw-r--r-- root/root        15 2022-11-29 02:22 temp/foo2.txt
-rw-r--r-- root/root        15 2022-11-29 02:22 temp/foo3.txt

untar_files: Untar archive to files

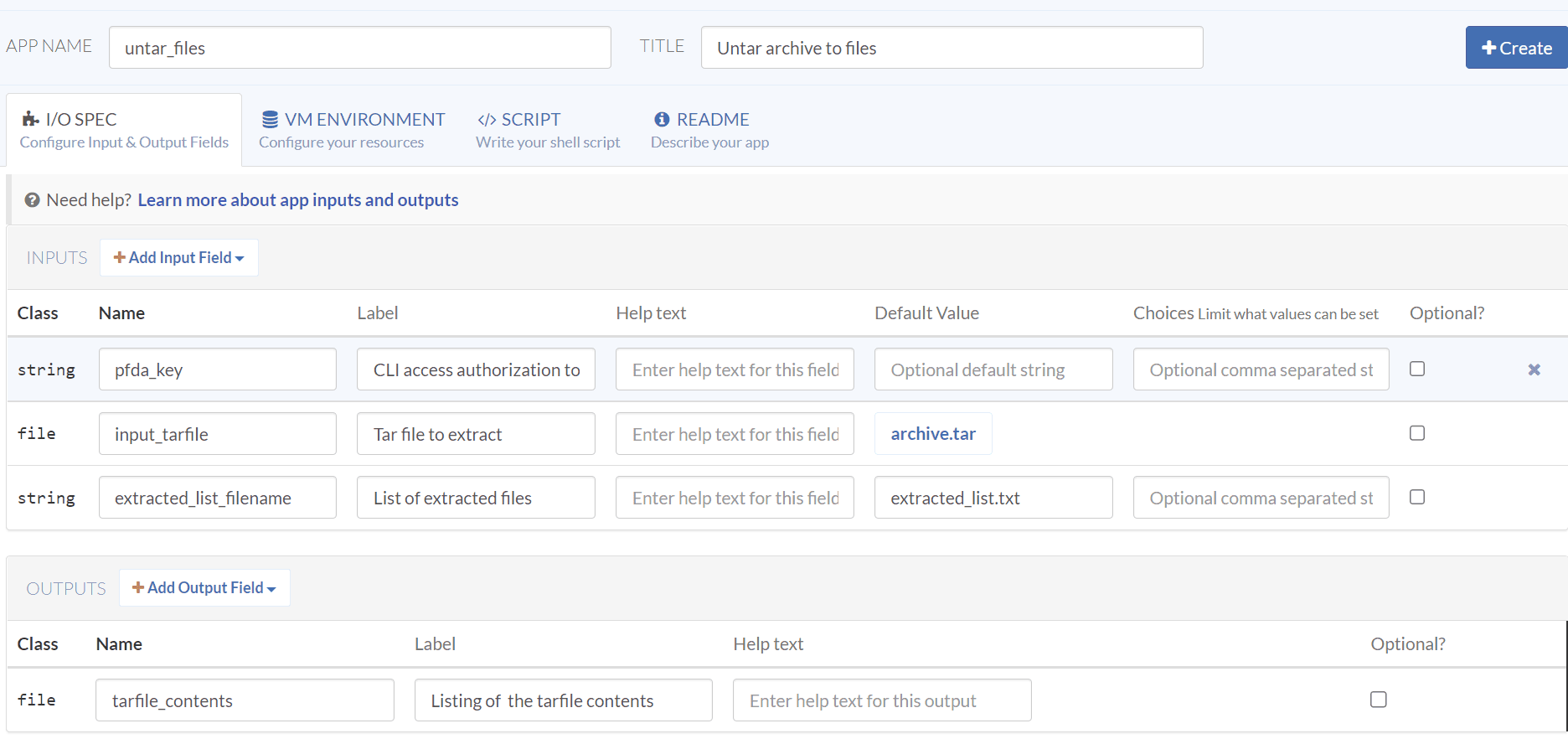

Create a untar_files app titled "Untar archive to files", with the following I/O Spec.

Setup the VM environment with internet access enabled, Baseline 2 default instance type, and select the pfda_cli_2.2 asset. Note that it can take minutes for the list of assets to loaded before they can be searched.

Enter the following Script:

set -euxo pipefail
echo "$pfda_key"
echo "$input_tarfile"
echo "$extracted_list_filename"
pfda -version
tar tvf "$input_tarfile_path" > "$extracted_list_filename"
mkdir temp
tar xvf "$input_tarfile_path" --directory temp
ls temp
for FILE in $(find ./temp -type f -print); do echo $FILE; done
emit "tarfile_contents" "$extracted_list_filename"

Enter a Readme and Create the app.

Input a tar archive file to extract into individual files. You'll need to provide a temporary authorization key for use with the pfda CLI and thus you should only run this app in your My Home or Private Spaces.

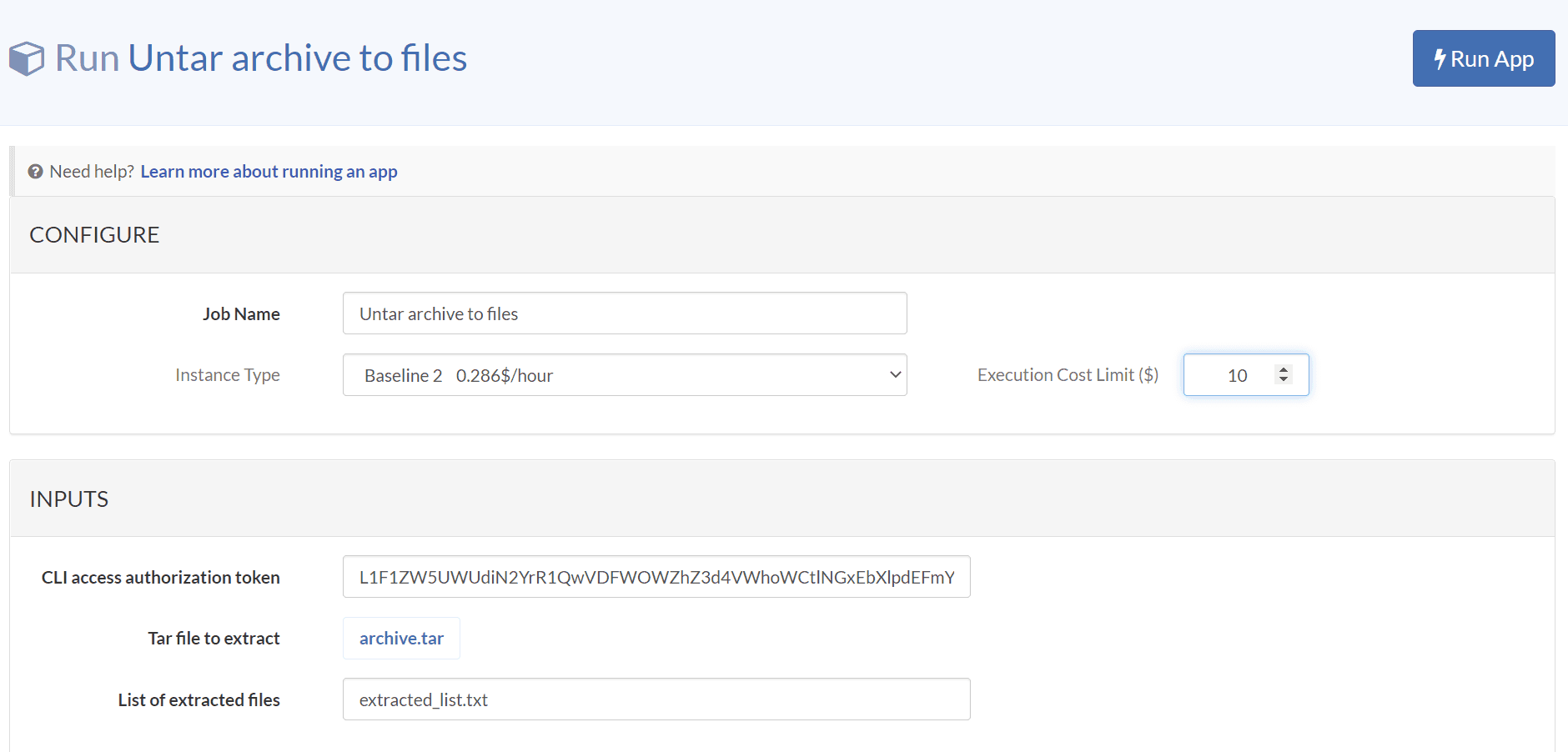

Run the app with the default inputs and a fresh authorization token for the pfda CLI.

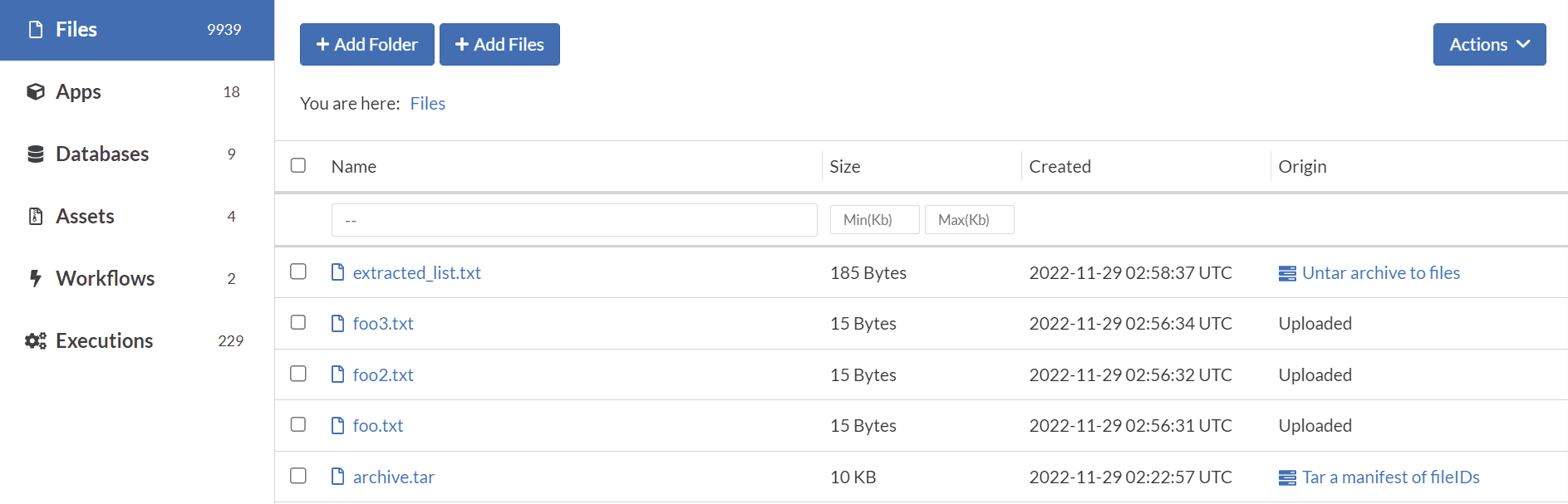

When the execution is done, observe the new extracted files, and open the extracted_list.txt file to see the list of extracted files.
